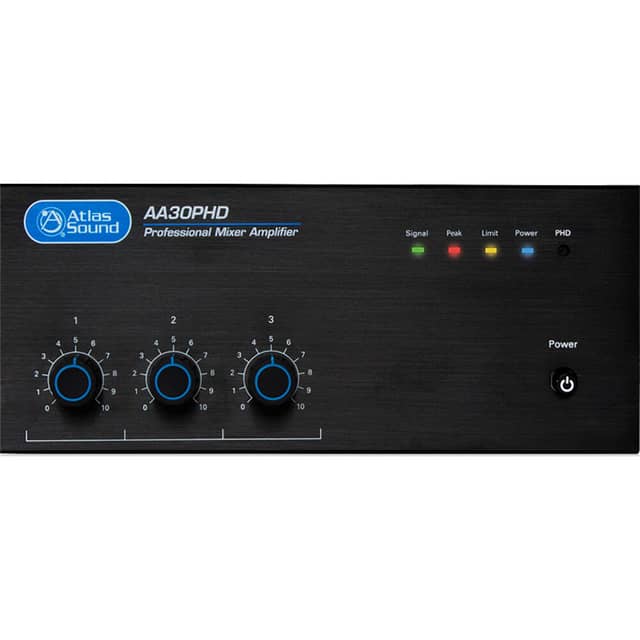

3-Input, 30-Watt Mixer Amplifier with Automatic System Test (PHD)

{
“detailed_description”: “

Ideal Use Cases

The AtlasIED AA30PHD is perfect for environments requiring both clear paging and high-quality background music. Ideal for distributed audio installations in retail spaces, hospitality venues, and corporate settings, this mixer amplifier seamlessly integrates paging announcements with ambient music. Its ability to mute secondary inputs during paging makes it a practical choice for spaces where announcements need to take precedence.

Why Choose This Model

The inclusion of the Push Here Diagnostic (PHD) technology is a standout feature, ensuring your system operates optimally by automatically testing speaker connections. This model not only verifies tap settings against the amplifier’s rated power but also identifies wiring shorts and incorrect 8-ohm taps. This prevents common installation errors, ensuring reliability and performance.

Installation and Integration

Designed with versatility in mind, the AA30PHD supports 25V, 70.7V, and 4-ohm speaker systems. Input 1 offers selectable microphone or line-level operation, complete with optional phantom power for microphone use. The rear-panel DIP switch enables creation of a Zone 2 output, expanding its integration capabilities. The amplifier’s compact dimensions (8.27″ W x 3.66″ H x 10.87″ D) and weight (9 lb) facilitate easy installation in various settings.

Performance Highlights

The AA30PHD delivers a frequency response of 50Hz to 15kHz, ensuring rich sound quality across its output range. With a 30-watt RMS power output at 0.5% THD into 4Ω, and compatibility with distributed voltage and low impedance systems, this amplifier offers flexibility to suit diverse audio requirements. The unit’s ability to manage three separate inputs enhances its versatility for complex audio environments.

What Makes It Different

The AA30PHD’s unique integration of diagnostic testing with mixing and amplification sets it apart. The PHD technology not only verifies connections but also assesses overall system health, providing peace of mind and minimizing downtime. The Zone 2 output option, alongside paging mute capabilities, allows for tailored audio management, making it a comprehensive solution for modern business audio needs.

Final Assessment

The AtlasIED AA30PHD is a robust choice for business audio systems, offering three-input flexibility and reliable 30-watt power. Its diagnostic capabilities, combined with support for various speaker configurations, make it an adaptable and dependable component for paging and ambient music applications. With a 36-month warranty, this amplifier promises durability and performance, ensuring it meets the demanding needs of professional audio environments.

“,
“short_description”: “The AtlasIED AA30PHD is a robust three-input, 30-watt mixer amplifier, ideal for distributed business paging and background music. It features Push Here Diagnostic technology for automatic speaker testing. Supporting 25V, 70.7V, or 4-ohm systems, it offers selectable mic/line Input 1 with optional phantom power, Zone 2 configuration, and paging mute functions, making it perfect for professional audio installations.”
}
