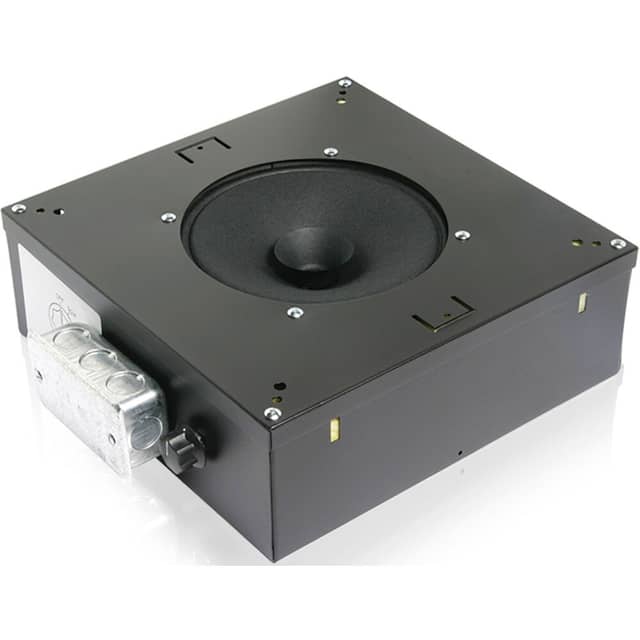

8″ Sound Masking Loudspeaker W/ 5-Watt 70V Transformer and Enclousure

Ideal Use Cases

The AtlasIED M812-S2T7-BX-RS is expertly crafted for environments requiring sound masking, offering an 8-inch dual-cone speaker with upward dispersion. This design makes it particularly effective in settings where sound needs to be diffused upwards, such as open-plan offices or healthcare facilities. Its integration with a 70V system enhances its suitability for large-scale installations.

The selectable power taps of 0.5, 1, 2, and 5 watts provide adaptability, enabling precise control over audio output based on specific environmental needs, ensuring effective sound masking across varied spaces.

Why Choose This Model

Choose the M812-S2T7-BX-RS for its thoughtful combination of components. The loudspeaker, 70V transformer, and enclosure are harmonized in one package, simplifying the installation process and reducing the need for additional components. Its 8-inch dual-cone design is optimized for sound masking, delivering clear audio performance.

The frequency response spans from 100 Hz to 10 kHz, accommodating a wide range of audio frequencies, while the sensitivity ratings of 97 dB peak and 94 dB average ensure robust sound production. These specifications provide clarity and are ideal for environments where precise sound control is paramount.

Installation and Integration

The M812-S2T7-BX-RS is designed for seamless installation into 70V sound systems. With four selectable power taps—0.5, 1, 2, and 5 watts—installers can tailor the setup to the specific needs of the environment. This flexibility ensures the loudspeaker can be optimized for various acoustic settings.

While the enclosure is included, further details such as mounting options and dimensions should be confirmed based on the specific installation site. This will ensure the speaker’s optimal performance is achieved in the intended location.

Performance Highlights

• 8-inch dual-cone design for precise sound masking applications.
• 100 Hz to 10 kHz frequency response for comprehensive audio coverage.
• Sensitivity of 97 dB peak and 94 dB average for strong audio output.
• Versatile 0.5, 1, 2, and 5-watt power taps through the included 70V transformer.
• Upward dispersion suited for environments requiring overhead sound distribution.
• Backed by a 60-month warranty from the date of purchase, ensuring long-term reliability.

These performance metrics make the M812-S2T7-BX-RS a top choice for sound masking, providing flexibility and reliability in a single package.

What Makes It Different

This model stands out with its upward dispersion and dual-cone speaker, designed specifically for sound masking. Its integrated 70V transformer with multiple power tap options offers adaptability without the need for additional components. The clear performance parameters further distinguish it as a specialized tool for audio professionals seeking precise sound distribution.

The ability to adjust power settings without changing hardware allows for a versatile approach to sound system design, making it a cost-effective and efficient solution.

Final Assessment

The AtlasIED M812-S2T7-BX-RS is an ideal solution for 70V sound masking applications, offering a comprehensive package that includes an 8-inch dual-cone speaker, 70V transformer, and enclosure. With a frequency response of 100 Hz to 10 kHz and flexibility provided by its power taps, it is well-suited for environments requiring tailored sound masking solutions. The 60-month warranty further underscores its reliability, making it a prudent investment for commercial sound systems.
