ANALOG BALANCED STEREO TO DANTE POE ADAPTER

Ideal Use Cases

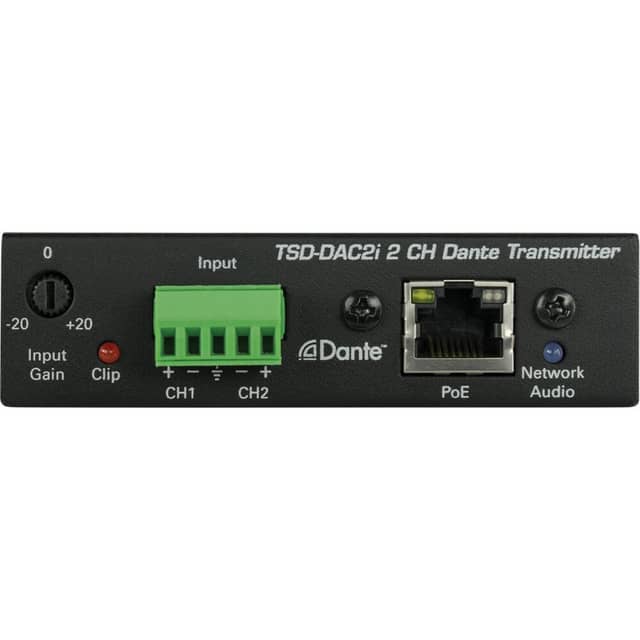

The AtlasIED TSD-DAC2i is designed for audio systems that need to place two balanced analog line channels onto a Dante digital audio network. It is particularly well suited for use with WTSD wall mixers, providing a direct conversion path from their analog audio into Dante digital audio. Its two-channel configuration also accommodates a balanced stereo source or two separate balanced line-level signals.

This focused interface is useful wherever analog equipment must connect to a Dante-based audio system. The compact enclosure makes it practical for installations where space is limited and a full-size converter is unnecessary. At only 1 inch high, 3.6 inches wide, and 3.17 inches deep, the adapter can be incorporated into a system without requiring extensive equipment space.

Why Choose This Model

The TSD-DAC2i combines a two-channel analog preamp, analog-to-Dante conversion, and PoE operation in one compact device. It provides a single RJ-45 network interface and draws only 1.9W, making it a focused solution for carrying balanced analog audio into a Dante environment.

Its published audio specifications provide concrete guidance for system planning. The analog inputs have a 15kΩ input impedance, while the stated frequency response extends from 20Hz to 20kHz within ±2dB. Total harmonic distortion is rated at 0.06% at 1kHz. These specifications make it possible to evaluate the interface against the requirements of the connected source and the wider audio system.

Installation and Integration

Network connectivity is provided through one RJ-45 interface. The unit receives power through PoE at 52V and 36mA, so its power requirement is handled through the PoE connection. Rated power consumption is 1.9W. This arrangement keeps the device’s network and power requirements concentrated at the RJ-45 connection.

For analog integration, the two balanced line inputs accept the source channels before converting them to Dante digital audio. The 15kΩ analog input impedance should be considered when matching the adapter with upstream equipment. AtlasIED specifically identifies the model as ideal for WTSD wall mixers, making that combination a documented application rather than an assumed compatibility.

The enclosure measures 1 x 3.6 x 3.17 inches, corresponding to 25 x 93 x 81 millimeters in height, width, and depth. Net weight is 0.44 lb, or 0.20 kg. These dimensions and weight support placement in compact installation areas. The listed shipping weight is 0.7 lb, or 0.32 kg.

Performance Highlights

The TSD-DAC2i covers the stated 20Hz to 20kHz audio range with a tolerance of ±2dB. Its signal-to-noise ratio is specified at 95dB at 1kHz with A weighting. Dynamic range is rated at 100dB, measured at -60dBFS with A weighting. Together with the 0.06% THD specification at 1kHz, these figures describe the adapter’s analog input and conversion performance using clearly defined measurements.

The two-channel design allows both sides of a balanced stereo feed to enter the Dante network through one interface. It can also handle two individual balanced line channels when the installation does not use a stereo source. The supplied technical data additionally lists a refresh rate of 20Hz.

What Makes It Different

This model has a narrowly defined role: converting two channels of balanced analog line audio into Dante digital audio while operating from PoE. That combination distinguishes it from an analog-only preamp or a network interface without analog inputs. The single RJ-45 connection, 1.9W power rating, and small enclosure keep the device centered on this specific conversion task.

Its documented suitability for WTSD wall mixers further clarifies where the product fits within an audio system. Instead of requiring an unspecified conversion method between a wall mixer and Dante audio, the TSD-DAC2i provides the stated two-channel analog-to-Dante path.

Final Assessment

The AtlasIED TSD-DAC2i is a compact choice for installations requiring two balanced analog line inputs to be converted to Dante digital audio. Its key decision points are the single RJ-45 network interface, PoE power at 52V and 36mA, 20Hz to 20kHz frequency response, 95dB signal-to-noise ratio, and 100dB dynamic range. A 36-month warranty from the date of purchase is included in the published specifications.
