IP SPK SYS 8″ C803A FLASHER MI

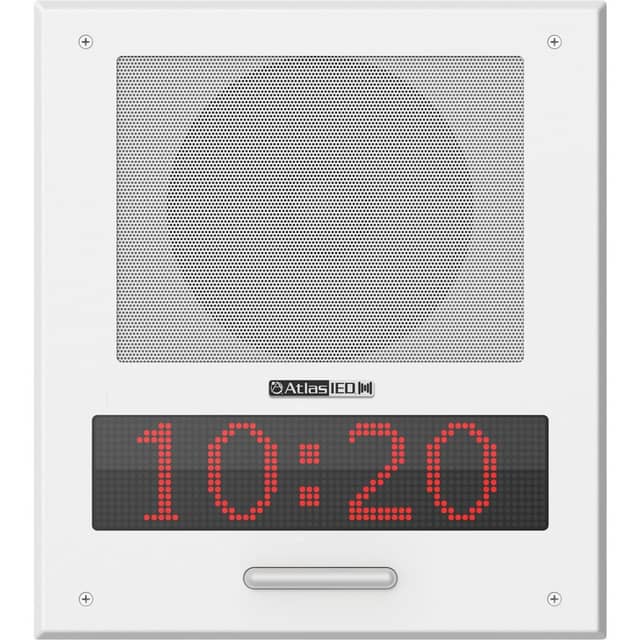

The AtlasIED IP-8SCMF is an 8-inch indoor wall-mount IP loudspeaker created for network-wide VoIP communication. It combines enhanced audio with a display, talkback capability, and a flasher in one endpoint. Its large loudspeaker and high-output design address environments where ambient noise or the scale of the space can make ordinary communication endpoints less effective.

Ideal Use Cases

This model is suited to indoor spaces that need announcements or tele-presence extended across an IP network, particularly where a larger loudspeaker is required to overcome high ambient noise or serve a large space. The integrated display and flasher add visible communication elements, while talkback supports interactive communication. Together, these capabilities help reinforce network-wide messages with audio, displayed information, and a visual flasher.

The IP-8SCMF is especially relevant when an installation calls for a wall-mounted endpoint instead of a smaller speaker format. Its combination of functions supports environments where communication must remain noticeable despite surrounding sound or substantial room dimensions.

Why Choose This Model

The IP-8SCMF consolidates several communication functions within a single listed model: an IP loudspeaker, display, talkback, and flasher. Its integrated amplifier provides 15 watts of total power, and the primary speaker output is specified at 8 ohms. An RJ-45 connector supplies the documented network interface, aligning the speaker with the VoIP communication application described for the IPX Series.

AtlasIED provides a warranty period of 60 months from the date of purchase. The documented safety and compliance references include 62368-1, CSA C22.2 #62368-1, the IEC 62368-1 CB Scheme, and FCC.

Installation and Integration

Static network registration can be configured through an HTTP GUI. The source data identifies three wall-enclosure choices for different placement requirements: IP-FEST-SD for flush in-wall mounting, IP-SEST-SD for straight surface on-wall mounting, and IP-SEA-SD for slanted on-wall mounting. The enclosure is identified as sold separately, allowing the mounting configuration to be selected for the installation.

The speaker measures 14-3/8 inches high, 12-7/8 inches wide, and 3 inches deep. Metric measurements are listed as 36.5252 cm high, 32.7152 cm wide, and 7.5946 cm deep. Its shipping weight is 5.50 pounds, or 2.49 kilograms. These documented measurements can be used when planning wall space, enclosure selection, handling, and delivery.

Performance Highlights

The IP-8SCMF is designed around communication in demanding indoor acoustic conditions. AtlasIED describes it as a high-output loudspeaker intended for high ambient noise areas or large spaces. The integrated 15-watt amplifier and 8-ohm primary speaker output provide the documented audio platform, while talkback extends the endpoint beyond one-way reproduction to tele-presence-oriented communication.

The display and flasher complement the audio system with visible information and signaling. This combination is valuable when an audible announcement may need an additional visual element. All three communication modes are presented within the same indoor wall-mount IP loudspeaker design.

What Makes It Different

The defining feature of the IP-8SCMF is its combination of high-output IP audio, a display, talkback, and a flasher. Rather than functioning only as a network loudspeaker, it supports both visible and interactive communication as part of a VoIP solution. Its documented flush, straight surface, and slanted enclosure options also provide three distinct approaches to wall placement without changing the endpoint model.

The RJ-45 connection, HTTP GUI for static configuration, integrated amplifier, and specified enclosure references give system planners concrete information for network and physical integration. The relatively shallow 3-inch depth is another documented consideration for installations where wall projection matters.

Final Assessment

The AtlasIED IP-8SCMF is a focused indoor communication endpoint for projects requiring an 8-inch wall-mounted IP loudspeaker with more than audio alone. Its display, talkback, flasher, RJ-45 connectivity, 15-watt integrated amplifier, and selectable wall-mount enclosure formats address both communication and installation requirements. For large spaces or areas with high ambient noise, it offers the specific high-output design described for network-wide VoIP communication, backed by a 60-month warranty from the date of purchase.
