Height-Adjustable TV Wall Mount for 70" to 90" Flat-Panel Interactive

Ideal Use Cases

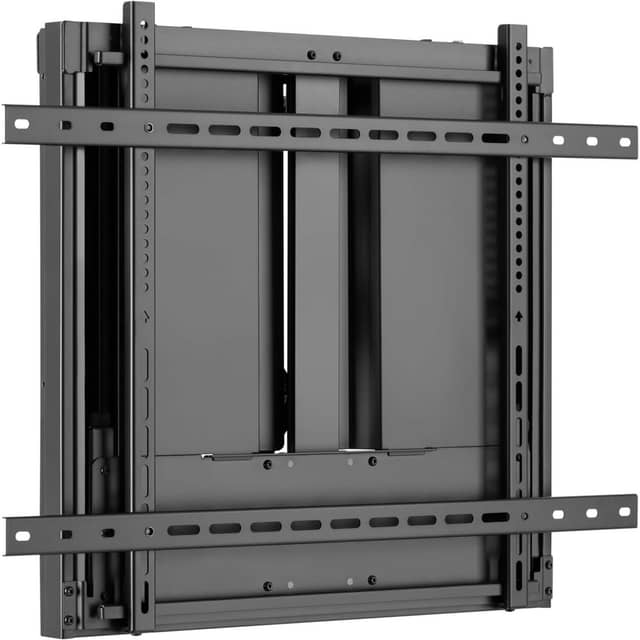

The Eaton DWM7090HD is designed for mounting most 70- to 90-inch interactive touchpanel displays on a wall. It supports compatible displays weighing from 132 to 198 pounds and uses an innovative weight-balancing design to provide smooth height adjustment of up to 15.7 inches. This combination makes it suitable for installations where a large flat-panel display must remain securely wall-mounted while allowing its height to be repositioned for viewing or interaction. The mount supports one monitor or HDTV and has a full-motion classification.

Why Choose This Model

This model combines high weight capacity, broad VESA compatibility and adjustable positioning in a compact steel structure. Its 198-pound maximum capacity accommodates substantial interactive displays, while the supported 132- to 198-pound operating range is clearly defined for equipment selection. The black mount measures 33.07 inches wide, 40.94 inches high and 5 inches deep. Once installed, it keeps the display 5 inches from the wall and hides behind the screen to maintain a professional appearance. Steel construction provides the structural foundation required for its specified capacity.

Installation and Integration

The DWM7090HD mounts to wood, brick or concrete wall surfaces, and the package includes mounting hardware for installation. Assembly is required, and tools are necessary. Before installation, confirm the display size, weight and mounting-hole pattern against the mount specifications. Supported VESA patterns extend from 200 x 200 through 800 x 600, with numerous intermediate configurations for compatibility with popular hole patterns. The included weight-balancing mechanism should be matched to a supported display weighing between 132 and 198 pounds to enable the specified height-adjustment performance. The package also contains the DWM7090HD height-adjustable wall mount and an owner's manual for setup guidance.

Performance Highlights

The principal positioning feature is smooth vertical adjustment through a range of up to 15.7 inches. This movement is supported by the mount's weight-balancing design, allowing the attached display to be raised or lowered without removing it from the wall. The mount is rated for one display and has a maximum weight capacity of 198 pounds. Its compact 5-inch wall distance limits how far the assembly projects from the mounting surface. Compatibility with 70- to 90-inch interactive touchpanels places the DWM7090HD in a specialized category for large-format display installations.

What Makes It Different

Unlike a fixed-position wall mount, the DWM7090HD adds substantial height adjustment for supported large interactive displays. Its combination of a 15.7-inch adjustment range and a 132- to 198-pound supported display range addresses installations involving heavy touchpanels. Extensive VESA coverage includes 200 x 200, 400 x 400, 600 x 600, 800 x 600 and many additional patterns. The ability to install the hardware on wood, brick or concrete also provides flexibility across the wall surfaces identified by Eaton. RoHS, RoHS3 and REACH compliance information is supplied for the product.

Final Assessment

The Eaton DWM7090HD is a purpose-built wall-mounting solution for one large interactive flat-panel display. It is best matched with a compatible 70- to 90-inch monitor or HDTV weighing 132 to 198 pounds and using one of the listed VESA patterns. Its defining advantages are smooth height adjustment up to 15.7 inches, steel construction, a 198-pound maximum capacity and a compact profile that remains hidden behind the display. Included mounting hardware and support for wood, brick and concrete surfaces provide the core components needed for installation, while the owner's manual supplies product-specific guidance.
