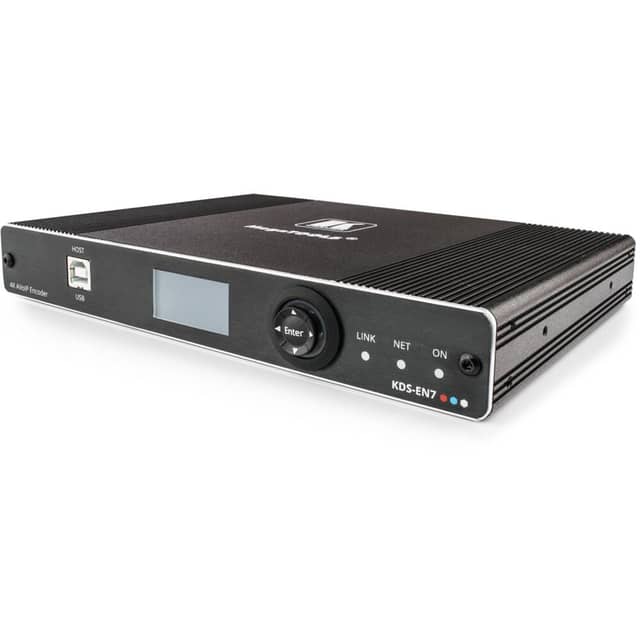

AVoIP Encoder for 4K60 4:2:0, HDR10 over 1G network

Ideal Use Cases

The KDS-EN7 is designed for AV-over-IP systems that need to move a 4K HDMI source across a 1G Ethernet network over copper cable. It fits installations where video distribution and device communication need to share an IP-based pathway. Along with encoded video, the unit can transport USB, IR, RS232, and CEC signals over the network, making it suitable when a source and its connected control functions must extend beyond a direct HDMI cable run. Its high-performance, highly scalable positioning also suits systems expected to use networked encoding rather than point-to-point video transport.

Why Choose This Model

Choose this model when the project calls for an encoder and transmitter at the source side of a KDS-7 AV-over-IP system. The HDMI input converts the incoming signal for IP streaming, while the 1G network design keeps the transport requirement clearly defined. The product title identifies support for 4K60 at 4:2:0 and HDR10. Control and peripheral signal transport are incorporated into the same network workflow: USB, IR, RS232, and CEC can all be transmitted over IP. P3K provides a control gateway for communicating through IR, RS232, or CEC with connected devices.

Installation and Integration

Integration begins at the source: connect the HDMI output from the source device to the encoder’s HDMI input, then connect the encoder to the copper-based Ethernet network used for the AV-over-IP stream. USB and control paths can be incorporated according to the required system design. The provided data references IR emitter and receiver cable options, USB-A to USB-B cable options, 3.5mm audio and control cabling, and CAT6A U/FTP video and LAN cabling in multiple lengths. These cables are referenced separately in the source data; no cable or accessory is identified as included with the encoder.

Performance Highlights

The core performance proposition is 4K video transmission across a 1G network. The listing title specifies 4K60 video with 4:2:0 color sampling and HDR10, while the scraped technical table separately records a 30Hz refresh rate. Because both values appear in the supplied product data, system designers should treat them as distinct source-listed details and confirm the required operating mode within their planned signal path. The encoder accepts HDMI video, encodes it, and streams it over IP through copper Ethernet. This combines the reach and routing model of an IP network with the source format support identified for the KDS-EN7.

What Makes It Different

What separates the KDS-EN7 from a video-only network transmitter is its handling of control and peripheral signals alongside video. USB, IR, RS232, and CEC transmission over IP allows the encoder to support more than the image path. Through P3K, it can serve as a gateway for control and communication with connected devices using IR, RS232, or CEC. The product data also identifies a KDS-EN7-AA variant as TAA compliant; that designation applies to the separately named variant and should not be assumed for SKU KDS-EN7.

Final Assessment

For a system built around 1G Ethernet and copper cabling, the KDS-EN7 provides a focused source-side solution: HDMI input, 4K AV-over-IP encoding, and network transport for video plus USB and control signals. Its strongest fit is an installation that values a single IP infrastructure for signal extension and control communication. The supplied data supports 4K60 4:2:0 and HDR10 in the product title, identifies 30Hz in the technical table, and confirms P3K-based control gateway functionality. Specify it as the KDS-7 encoder when those capabilities align with the network, source, and endpoint requirements of the project.
