Height-Adjustable TV Wall Mount for 50-70″ Flat-Panel Interactive Disply

Ideal Use Cases

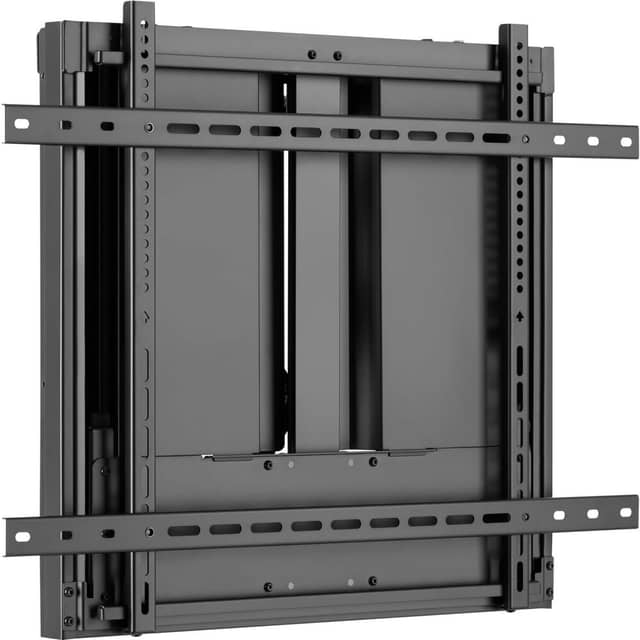

The Eaton Tripp Lite series DWM5070HD is designed for wall-mounting a single 50- to 70-inch flat-panel interactive touch display. It supports displays weighing from 88 to 132 pounds, making it appropriate for installations that require a substantial monitor or HDTV to be positioned at an adjustable working height. The mount is especially useful when different users need to raise or lower the screen instead of working with a permanently fixed vertical position.

Its compact profile also suits installations where the mounting structure should remain out of sight. Once installed, the steel assembly is concealed behind the display to maintain a clean, professional appearance.

Why Choose This Model

An innovative weight-balancing design enables smooth height adjustment through a range of up to 15.7 inches. This allows the mounted display to be repositioned without removing it from the wall or relocating the mounting hardware. The listed motion type is full, while the product highlights emphasize its controlled vertical adjustment.

The DWM5070HD supports numerous VESA mounting-hole patterns, including configurations from 200 x 200 through 800 x 600. This broad VESA support helps the mount accommodate many popular interactive displays within its specified size and weight ranges. Steel construction provides the structure required for its maximum 132-pound capacity.

Installation and Integration

The mount is intended exclusively for wall installation. Included mounting hardware supports installation on wood, brick, or concrete wall surfaces. Assembly is required, and tools are necessary. An owner’s manual is supplied with the mount to guide setup.

Before installation, verify that the display weighs between 88 and 132 pounds and uses one of the supported VESA patterns. The mount measures 33.07 inches wide, 40.94 inches high, and 5 inches deep. Its specified distance from the wall is also 5 inches, allowing the assembly to remain compact behind the flat panel. The mount itself weighs 53.9 pounds, which should be considered when planning the installation.

Performance Highlights

The principal performance feature is the weight-balanced height adjustment. A vertical travel range of up to 15.7 inches provides meaningful positioning flexibility for a large interactive display while keeping it mounted on the wall. The mechanism is designed for smooth adjustment when used with displays inside the stated 88- to 132-pound range.

The DWM5070HD holds one monitor or HDTV and has a maximum weight capacity of 132 pounds. Its black finish and concealed position help it integrate without drawing attention away from the display. The steel frame combines a compact installed depth with support for large-format interactive panels.

What Makes It Different

This model combines height adjustability, high weight capacity, and extensive VESA compatibility in one wall-mounted assembly. Supported patterns include 200 x 200, 300 x 300, 400 x 400, 600 x 400, 700 x 600, 800 x 500, 800 x 600, and numerous intermediate configurations. That selection reduces dependence on a single mounting-hole layout while remaining within the documented display size and weight requirements.

Hardware for three wall-surface types is included, and the compact mount hides behind the screen after installation. The DWM5070HD is also listed as compliant with RoHS3, RoHS, and REACH requirements.

Final Assessment

The Eaton DWM5070HD is a purpose-built option for mounting one 50- to 70-inch interactive flat panel that weighs 88 to 132 pounds. Its defining advantages are smooth weight-balanced adjustment up to 15.7 inches, steel construction, a 132-pound maximum capacity, and support for a wide range of VESA patterns. Included mounting hardware for wood, brick, and concrete walls, along with the owner’s manual, provides the core components needed for installation. For applications requiring adjustable display height without a prominent mounting structure, this model delivers a focused combination of compatibility, capacity, and concealed wall integration.
